Introduction

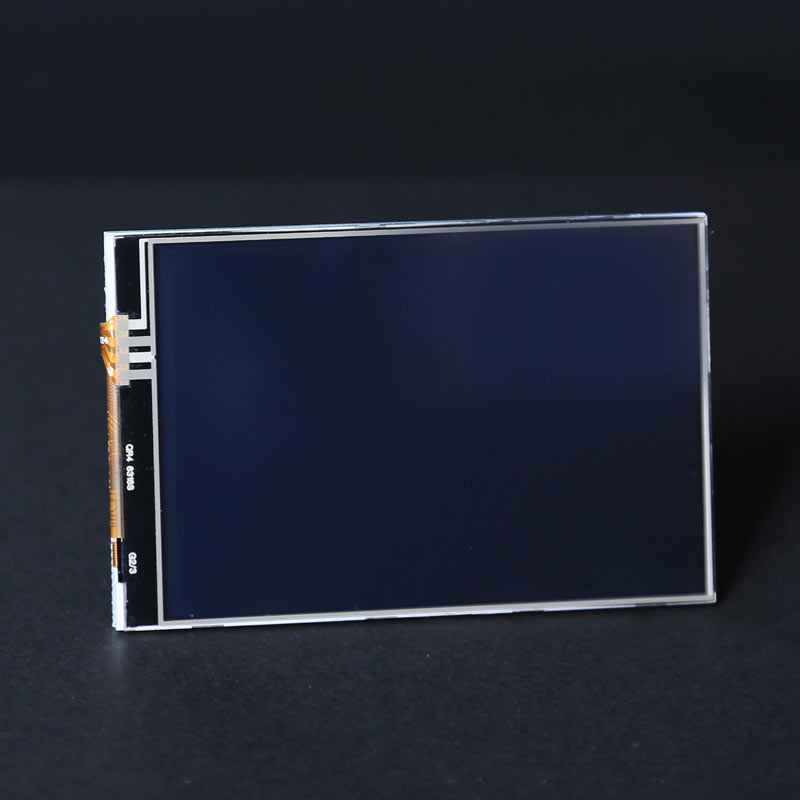

The 4 inch Raspberry display is designed for Raspberry. As it is touch screen, you can design it for many things.

Technical Data

Pins:

1,17                   3.3v

2,4                     5V

3,5,7,8,10,12,13,15,16    NC

6,9,14,20,25            GND

11                TP_IRQ   Touch Panel interrupt, low level while the touch Panel detect

18                LCD_RS       Instruction/data resister selection

19                LCD_SI/TP_SI   SPI data input of LCD/Touch Panel

21                TP_SO         SPI data output of Touch Panel

22                RST            Reset

23                LCD_SCK/TP_SCK  SPI clock of LCD/Touch Panel

24                LCD_CS          LCD chip selection, low active

26                TP_CS           Touch Panel chip selection, low active

Features

Designed for Raspberry Pi Model B/B+, an ideal alternative solution for HDMI monitor

Compatible with Raspberry Pi A+,B,B+/2.

High quality and perfect displaying from very wide viewing angle

Size: 320*480Pixel

Convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime

Play videos (supports multi formats, MP4 and so on)

Take photos by touching (up to 17 camera modes)

Support software keyboard (system interaction without keyboard/mouse)
