Motor Shield

SKU
USD
$36.99 $36.99
IN STOCK 99999 Available
Shipping Cost:
to
Delivery:
Estimated between
Weight : 30 g
Share this:
  • Description

Introduction

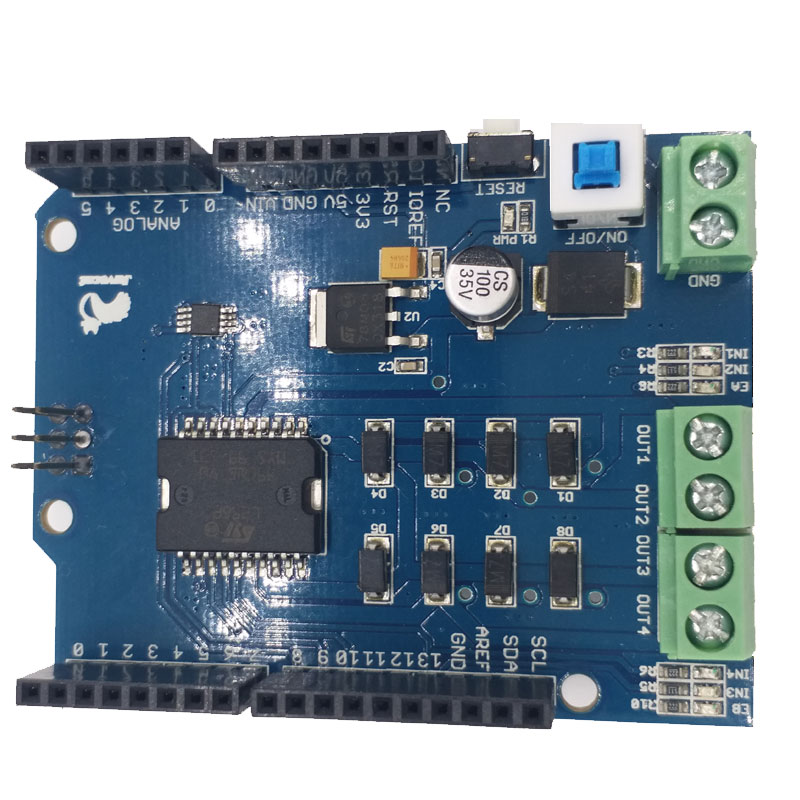

Motor Shield is a platform for robotics and mechanical applications based on L298P. It can be used to drive double DC motor or a 4-wire stepper. When controlling double DC motor, there are Only 4 control pins are used, which makes more easily to control, and saves the control pins for controller. The Drive current can be up to 2A per motor output for the adding of the heat sink. Measure the driver current by the additional resistance, makes the system more smartly.

Technical Data

Operating voltage: 4.5V to .55V,

Typical operate voltage: 5V

Drive Voltage: 6v to 15V

Typical drive voltage: 12V

Output current: 2A



Features

The logic control voltage: 4.5~5.5V

Motor Supply Voltage: 6~ 15V

Reduced control pins needed

Measurement for driver current

Drive part of the operating current Io: 2A

Maximum power dissipation: 25W (T = 75 degree Celsius)

Operating temperature: -25 degree Celsius ~ +130 degree Celsius

Drive Type: Dual high-power H-bridge driver


Wiki
