Introduction

RMF69 Shield-433MHz contains a FSK wireless module, it has the same function that radio frequency transmitter owns, such as receiving and transmitting message. RMF69 Shield-433MHz can totally compatible to Arduino.

Technical Data

Operate frequent: 433MHz

Operate voltage: 1.8 to 3.6V

Transmission rate: 300Kbps

Max emission power: 20dBm

Max emission current: 120mA

Receive sensitivity: -120dBm @ 1.2Kb/s

Features

Low consumption

More professional ISM band

Frequent range from 140 to 960MHz

Totally compatible to Arduino

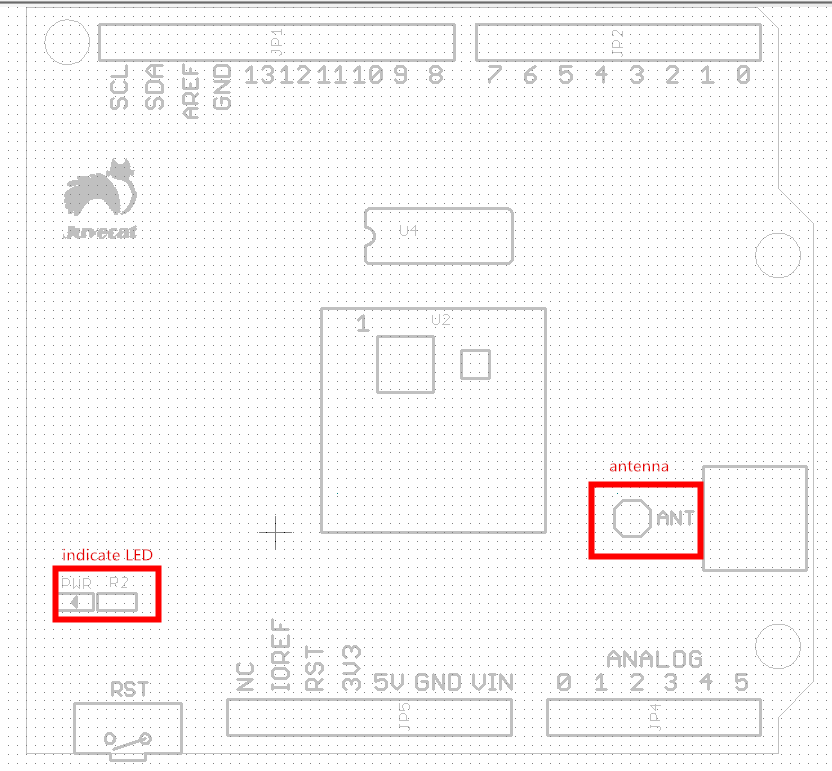

Interface

Usage

Making a call

[code]

#include <SoftwareSerial.h>

SoftwareSerial mySerial(7, 8);

void setup()

{

mySerial.begin(19200);               // the GPRS baud rate

Serial.begin(19200);               // the GPRS baud rate

delay(2000);

mySerial.println("ATDxxxxxxxxx;"); // xxxxxxxxx is the number you want to dial.

if(mySerial.available())

Serial.print((unsigned char)mySerial.read());

delay(10000);

delay(10000);

mySerial.println("ATH"); //End the call.

if(mySerial.available())

Serial.print((unsigned char)mySerial.read());

}

void loop()

{

//Do nothing

}

 [code]

Resource

Program

Schematic

Datasheet
