Instruction

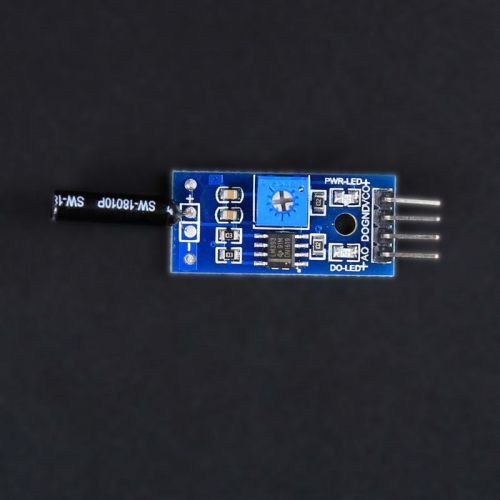

The vibration sensor module(SW-18010p) is based on sensor SW-18010p, SW-18010p is also a switch, it’s normally off in any angle, when shake it or hit it, the switch will on, there’s a variable resistance used to set the threshold, if the strength of the out environment is lower than the threshold, the switch keeps the status of off. You may find that there are four pins at the output area, two of them are VCC and GND pin, the others are digital output and analog output.

Features

Switch is default to be open

Digital output

Supply voltage:3.3V-5V

Indicated LED shows the result

Dimension: 80px x 35px

Application Idea

Movement detection.

Vibration detecting Applications

Resource

Program
