Introduction

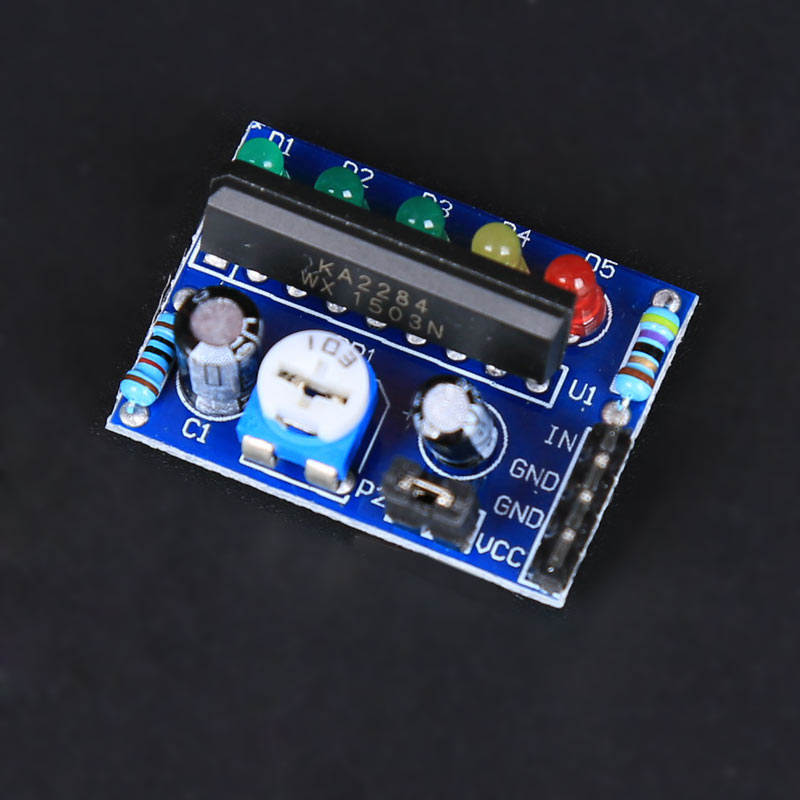

This module can be used as electric quantity indicator, Voltage indicator and Audio indicator.

Feature

Working voltage: 3.5V-12V

the magnitude of the level can be adjusted

AC and DC signals can be controlled by jumper

PCB board Dimension: 29 (mm) x21 (mm)

Resource

Datasheet

Schematic
