BLE Shield

Introduction

Bluetooth Shield integrates a Serial Bluetooth module. It can be totally compatible to Arduino/ Catduino for unvarnished transmission. Digital 0 and 1 is Hardware Serial Port, and choose two pins from D0 to D7 in Arduino as the software port, the external f analog IOs can be used to connect with other devices.




Technical Data

Operate frequent: 433MHz

Operate voltage: 1.8 to 3.6V

Transmission rate: 300Kbps

Max emission power: 20dBm

Max emission current: 120mA

Receive sensitivity: -120dBm @ 1.2Kb/s



Features

Low consumption

More professional ISM band

Frequent range from 140 to 960MHz

Totally compatible to Arduino

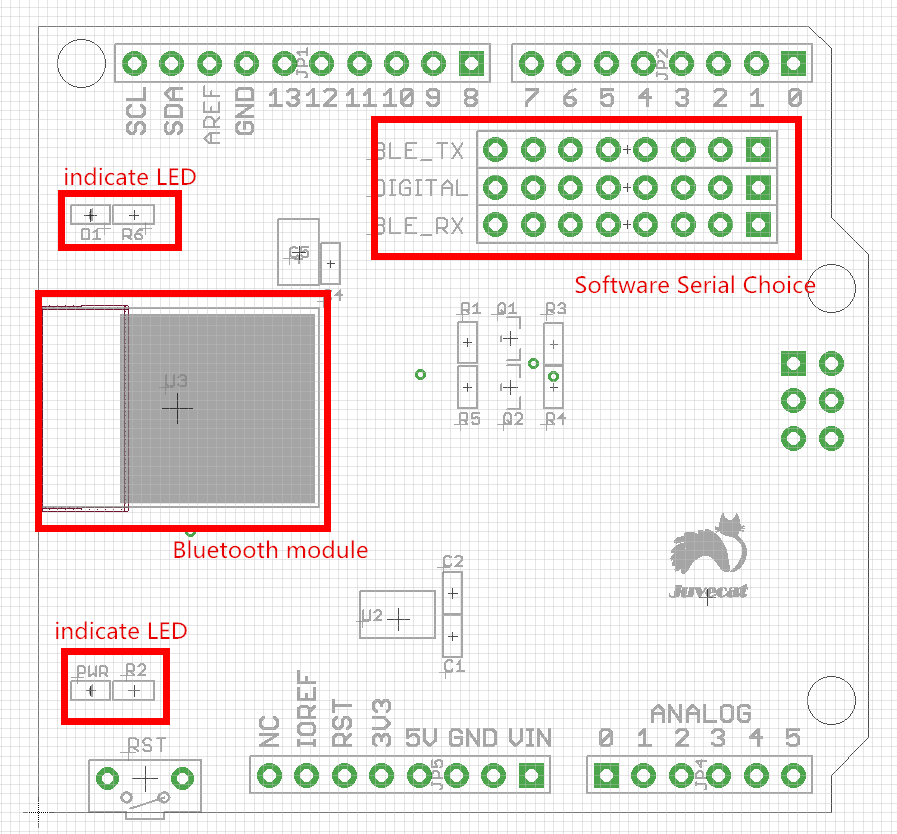

Interface Function



Interface


Package List

BLE shield

Antenna


Usage

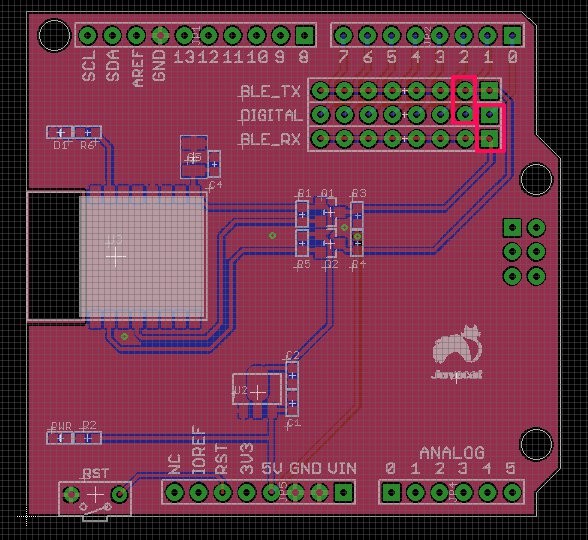

Connect wire jumper to BLE shield like below:



Plug BLE shield to Arduino/Catduino

Upload following program to Arduino/Catduino



[code]

// the setup function runs once when you press reset or power the board

void setup() {

  // initialize digital pin LED_BUILTIN as an output.

  pinMode(LED_BUILTIN, OUTPUT);

  Serial.begin(115200);

}



// the loop function runs over and over again forever

void loop() {

  digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)

  delay(1000);                       // wait for a second

  digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW

  delay(1000);                       // wait for a second

}



 [/code]



Open serial monitor, set the baud rate at 115200, send AT, if you got respond of “OK”, BLE shield work.



Resource

Program

Schematic

Datasheet
