Triple axis accelerometer(MPU6050)

Introduction

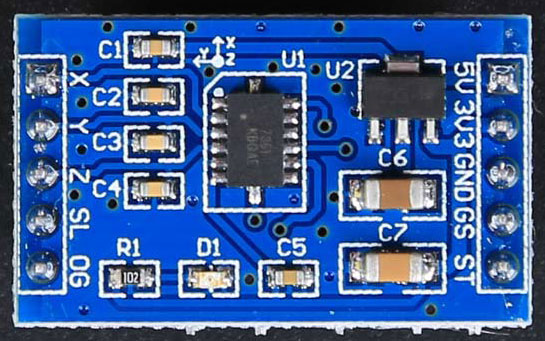

The MPU-6050 combines a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an build-in Digital Motion Processor(DMP) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050A does away with the cross-axis alignment problems that can creep up on discrete parts.

Features

Input Voltage: 3V-5V

Dimensions: 20 * 15 * 1.6mm

Selectable Solder Jumpers on CLK, FSYNC and AD0

synchronization and gesture detection

Tri-Axis accelerometer with a programmable full scale range of +-2g, +-4g, +-8g and 16g

Digital Motion Processing(DMP engine offloads complex MotionFusion, sensor timing

I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format

Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of 250, 500, 1000, and 2000dps

Embedded algorithms for run-time bias and compass calibration. No user intervention required

Digital-output temperature sensor


Usage

[code]

// I2C device class (I2Cdev) demonstration Arduino sketch for MPU6050 class

// 10/7/2011 by Jeff Rowberg <jeff@rowberg.net>

// Updates should (hopefully) always be available at https://github.com/jrowberg/i2cdevlib

//

// Changelog:

//     2011-10-07 - initial release


/* ============================================

I2Cdev device library code is placed under the MIT license

Copyright (c) 2011 Jeff Rowberg


Permission is hereby granted, free of charge, to any person obtaining a copy

of this software and associated documentation files (the "Software"), to deal

in the Software without restriction, including without limitation the rights

to use, copy, modify, merge, publish, distribute, sublicense, and/or sell

copies of the Software, and to permit persons to whom the Software is

furnished to do so, subject to the following conditions:


The above copyright notice and this permission notice shall be included in

all copies or substantial portions of the Software.


THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER

LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN

THE SOFTWARE.

===============================================

*/


// Arduino Wire library is required if I2Cdev I2CDEV_ARDUINO_WIRE implementation

// is used in I2Cdev.h

#include "Wire.h"


// I2Cdev and MPU6050 must be installed as libraries, or else the .cpp/.h files

// for both classes must be in the include path of your project

#include "I2Cdev.h"

#include "MPU6050.h"


// class default I2C address is 0x68

// specific I2C addresses may be passed as a parameter here

// AD0 low = 0x68 (default for InvenSense evaluation board)

// AD0 high = 0x69

MPU6050 accelgyro;


int16_t ax, ay, az;

int16_t gx, gy, gz;


#define LED_PIN 13

bool blinkState = false;


void setup() {

    // join I2C bus (I2Cdev library doesn't do this automatically)

    Wire.begin();


    // initialize serial communication

    // (38400 chosen because it works as well at 8MHz as it does at 16MHz, but

    // it's really up to you depending on your project)

    Serial.begin(38400);


    // initialize device

    Serial.println("Initializing I2C devices...");

    accelgyro.initialize();


    // verify connection

    Serial.println("Testing device connections...");

    Serial.println(accelgyro.testConnection() ? "MPU6050 connection successful" : "MPU6050 connection failed");


    // configure Arduino LED for

    pinMode(LED_PIN, OUTPUT);

}


void loop() {

    // read raw accel/gyro measurements from device

    accelgyro.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);


    // these methods (and a few others) are also available

    //accelgyro.getAcceleration(&ax, &ay, &az);

    //accelgyro.getRotation(&gx, &gy, &gz);


    // display tab-separated accel/gyro x/y/z values

    Serial.print("a/g:\t");

    Serial.print(ax); Serial.print("\t");

    Serial.print(ay); Serial.print("\t");

    Serial.print(az); Serial.print("\t");

    Serial.print(gx); Serial.print("\t");

    Serial.print(gy); Serial.print("\t");

    Serial.println(gz);


    // blink LED to indicate activity

    blinkState = !blinkState;

    digitalWrite(LED_PIN, blinkState);

}


[/code]
