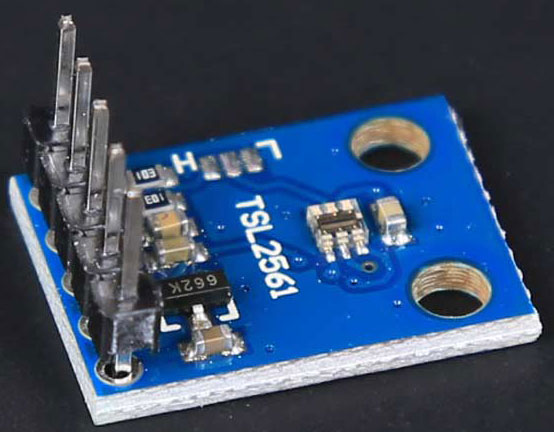

Luminosity Sensor module(TSL2561)

Introduction

The TSL2561 Luminosity Sensor is a sophisticated light sensor which has a flat response across most of the visible spectrum. Compared to simple sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye. because the TSL2561 is an integrating sensor (it soaks up light for a predetermined amount of time), it is capable of measuring both small and large amounts of light by changing the integration time.

The TSL2561 is capable of direct I2C communication and is able to conduct specific light ranges from 0.1 to 40k+ Lux easily. Additionally, the TSL12561 contains two integrating analog-to-digital converters (ADC).

Features

I2C interfaces

Power supply:3.3v to 5v

a low supply current max of 0.6mA


usage

/* SFE_TSL2561 library example sketch



This sketch shows how to use the SFE_TSL2561

library to read the AMS/TAOS TSL2561

light sensor.



Hardware connections:



3V3 to 3.3V ~ 5v

GND to GND



You will also need to connect the I2C pins (SCL and SDA) to your Arduino.

The pins are different on different Arduinos:



                    SDA    SCL

Any Arduino         "SDA"  "SCL"

Uno, Redboard, Pro  A4     A5

Mega2560, Due       20     21

Leonardo            2      3



You do not need to connect the INT (interrupt) pin

for basic operation.



Operation:



Upload this sketch to your Arduino, and open the

Serial Monitor window to 9600 baud.



Have fun! -Your friends at SparkFun.



Our example code uses the "beerware" license.

You can do anything you like with this code.

No really, anything. If you find it useful,

buy me a beer someday.



V10 Mike Grusin, SparkFun Electronics 12/26/2013

*/



// Your sketch must #include this library, and the Wire library

// (Wire is a standard library included with Arduino):



#include <SFE_TSL2561.h>

#include <Wire.h>



// Create an SFE_TSL2561 object, here called "light":



SFE_TSL2561 light;



// Global variables:



boolean gain;     // Gain setting, 0 = X1, 1 = X16;

unsigned int ms;  // Integration ("shutter") time in milliseconds



void setup()

{

  // Initialize the Serial port:



  Serial.begin(9600);

  Serial.println("TSL2561 example sketch");



  // Initialize the SFE_TSL2561 library



  // You can pass nothing to light.begin() for the default I2C address (0x39),

  // or use one of the following presets if you have changed

  // the ADDR jumper on the board:



  // TSL2561_ADDR_0 address with '0' shorted on board (0x29)

  // TSL2561_ADDR   default address (0x39)

  // TSL2561_ADDR_1 address with '1' shorted on board (0x49)



   light.begin();



  // Get factory ID from sensor:

  // (Just for fun, you don't need to do this to operate the sensor)



  unsigned char ID;



  if (light.getID(ID))

  {

    Serial.print("Got factory ID: 0X");

    Serial.print(ID,HEX);

    Serial.println(", should be 0X5X");

  }

  // Most library commands will return true if communications was successful,

  // and false if there was a problem. You can ignore this returned value,

  // or check whether a command worked correctly and retrieve an error code:

  else

  {

    byte error = light.getError();

    printError(error);

  }



  // The light sensor has a default integration time of 402ms,

  // and a default gain of low (1X).



  // If you would like to change either of these, you can

  // do so using the setTiming() command.



  // If gain = false (0), device is set to low gain (1X)

  // If gain = high (1), device is set to high gain (16X)



  gain = 0;



  // If time = 0, integration will be 13.7ms

  // If time = 1, integration will be 101ms

  // If time = 2, integration will be 402ms

  // If time = 3, use manual start / stop to perform your own integration



  unsigned char time = 2;



  // setTiming() will set the third parameter (ms) to the

  // requested integration time in ms (this will be useful later):



  Serial.println("Set timing...");

  light.setTiming(gain,time,ms);



  // To start taking measurements, power up the sensor:



  Serial.println("Powerup...");

  light.setPowerUp();



  // The sensor will now gather light during the integration time.

  // After the specified time, you can retrieve the result from the sensor.

  // Once a measurement occurs, another integration period will start.

}



void loop()

{

  // Wait between measurements before retrieving the result

  // (You can also configure the sensor to issue an interrupt

  // when measurements are complete)



  // This sketch uses the TSL2561's built-in integration timer.

  // You can also perform your own manual integration timing

  // by setting "time" to 3 (manual) in setTiming(),

  // then performing a manualStart() and a manualStop() as in the below

  // commented statements:



  // ms = 1000;

  // light.manualStart();

  delay(ms);

  // light.manualStop();



  // Once integration is complete, we'll retrieve the data.



  // There are two light sensors on the device, one for visible light

  // and one for infrared. Both sensors are needed for lux calculations.



  // Retrieve the data from the device:



  unsigned int data0, data1;



  if (light.getData(data0,data1))

  {

    // getData() returned true, communication was successful



    Serial.print("data0: ");

    Serial.print(data0);

    Serial.print(" data1: ");

    Serial.print(data1);



    // To calculate lux, pass all your settings and readings

    // to the getLux() function.



    // The getLux() function will return 1 if the calculation

    // was successful, or 0 if one or both of the sensors was

    // saturated (too much light). If this happens, you can

    // reduce the integration time and/or gain.

    // For more information see the hookup guide at: https://learn.sparkfun.com/tutorials/getting-started-with-the-tsl2561-luminosity-sensor



    double lux;    // Resulting lux value

    boolean good;  // True if neither sensor is saturated



    // Perform lux calculation:



    good = light.getLux(gain,ms,data0,data1,lux);



    // Print out the results:


    Serial.print(" lux: ");

    Serial.print(lux);

    if (good) Serial.println(" (good)"); else Serial.println(" (BAD)");

  }

  else

  {

    // getData() returned false because of an I2C error, inform the user.



    byte error = light.getError();

    printError(error);

  }

}



void printError(byte error)

  // If there's an I2C error, this function will

  // print out an explanation.

{

  Serial.print("I2C error: ");

  Serial.print(error,DEC);

  Serial.print(", ");



  switch(error)

  {

    case 0:

      Serial.println("success");

      break;

    case 1:

      Serial.println("data too long for transmit buffer");

      break;

    case 2:

      Serial.println("received NACK on address (disconnected?)");

      break;

    case 3:

      Serial.println("received NACK on data");

      break;

    case 4:

      Serial.println("other error");

      break;

    default:

      Serial.println("unknown error");

  }

}

You will also need to connect the I2C pins (SCL and SDA) to your Arduino.

The pins are different on different Arduinos:



                    SDA    SCL

Any Arduino         "SDA"  "SCL"

Uno, Redboard, Pro  A4     A5

Mega2560, Due       20     21

Leonardo            2      3



You do not need to connect the INT (interrupt) pin

for basic operation.



Operation:



Upload this sketch to your Arduino, and open the

Serial Monitor window to 9600 baud.



Have fun! -Your friends at SparkFun.



Our example code uses the "beerware" license.

You can do anything you like with this code.

No really, anything. If you find it useful,

buy me a beer someday.



V10 Mike Grusin, SparkFun Electronics 12/26/2013

*/



// Your sketch must #include this library, and the Wire library

// (Wire is a standard library included with Arduino):



#include <SFE_TSL2561.h>

#include <Wire.h>



// Create an SFE_TSL2561 object, here called "light":



SFE_TSL2561 light;



// Global variables:



boolean gain;     // Gain setting, 0 = X1, 1 = X16;

unsigned int ms;  // Integration ("shutter") time in milliseconds



void setup()

{

  // Initialize the Serial port:



  Serial.begin(9600);

  Serial.println("TSL2561 example sketch");



  // Initialize the SFE_TSL2561 library



  // You can pass nothing to light.begin() for the default I2C address (0x39),

  // or use one of the following presets if you have changed

  // the ADDR jumper on the board:



  // TSL2561_ADDR_0 address with '0' shorted on board (0x29)

  // TSL2561_ADDR   default address (0x39)

  // TSL2561_ADDR_1 address with '1' shorted on board (0x49)



   light.begin();



  // Get factory ID from sensor:

  // (Just for fun, you don't need to do this to operate the sensor)



  unsigned char ID;



  if (light.getID(ID))

  {

    Serial.print("Got factory ID: 0X");

    Serial.print(ID,HEX);

    Serial.println(", should be 0X5X");

  }

  // Most library commands will return true if communications was successful,

  // and false if there was a problem. You can ignore this returned value,

  // or check whether a command worked correctly and retrieve an error code:

  else

  {

    byte error = light.getError();

    printError(error);

  }



  // The light sensor has a default integration time of 402ms,

  // and a default gain of low (1X).



  // If you would like to change either of these, you can

  // do so using the setTiming() command.



  // If gain = false (0), device is set to low gain (1X)

  // If gain = high (1), device is set to high gain (16X)



  gain = 0;



  // If time = 0, integration will be 13.7ms

  // If time = 1, integration will be 101ms

  // If time = 2, integration will be 402ms

  // If time = 3, use manual start / stop to perform your own integration



  unsigned char time = 2;



  // setTiming() will set the third parameter (ms) to the

  // requested integration time in ms (this will be useful later):



  Serial.println("Set timing...");

  light.setTiming(gain,time,ms);



  // To start taking measurements, power up the sensor:



  Serial.println("Powerup...");

  light.setPowerUp();



  // The sensor will now gather light during the integration time.

  // After the specified time, you can retrieve the result from the sensor.

  // Once a measurement occurs, another integration period will start.

}



void loop()

{

  // Wait between measurements before retrieving the result

  // (You can also configure the sensor to issue an interrupt

  // when measurements are complete)



  // This sketch uses the TSL2561's built-in integration timer.

  // You can also perform your own manual integration timing

  // by setting "time" to 3 (manual) in setTiming(),

  // then performing a manualStart() and a manualStop() as in the below

  // commented statements:



  // ms = 1000;

  // light.manualStart();

  delay(ms);

  // light.manualStop();



  // Once integration is complete, we'll retrieve the data.



  // There are two light sensors on the device, one for visible light

  // and one for infrared. Both sensors are needed for lux calculations.



  // Retrieve the data from the device:



  unsigned int data0, data1;



  if (light.getData(data0,data1))

  {

    // getData() returned true, communication was successful



    Serial.print("data0: ");

    Serial.print(data0);

    Serial.print(" data1: ");

    Serial.print(data1);



    // To calculate lux, pass all your settings and readings

    // to the getLux() function.



    // The getLux() function will return 1 if the calculation

    // was successful, or 0 if one or both of the sensors was

    // saturated (too much light). If this happens, you can

    // reduce the integration time and/or gain.

    // For more information see the hookup guide at: https://learn.sparkfun.com/tutorials/getting-started-with-the-tsl2561-luminosity-sensor



    double lux;    // Resulting lux value

    boolean good;  // True if neither sensor is saturated



    // Perform lux calculation:



    good = light.getLux(gain,ms,data0,data1,lux);



    // Print out the results:


    Serial.print(" lux: ");

    Serial.print(lux);

    if (good) Serial.println(" (good)"); else Serial.println(" (BAD)");

  }

  else

  {

    // getData() returned false because of an I2C error, inform the user.



    byte error = light.getError();

    printError(error);

  }

}



void printError(byte error)

  // If there's an I2C error, this function will

  // print out an explanation.

{

  Serial.print("I2C error: ");

  Serial.print(error,DEC);

  Serial.print(", ");



  switch(error)

  {

    case 0:

      Serial.println("success");

      break;

    case 1:

      Serial.println("data too long for transmit buffer");

      break;

    case 2:

      Serial.println("received NACK on address (disconnected?)");

      break;

    case 3:

      Serial.println("received NACK on data");

      break;

    case 4:

      Serial.println("other error");

      break;

    default:

      Serial.println("unknown error");

  }

}
